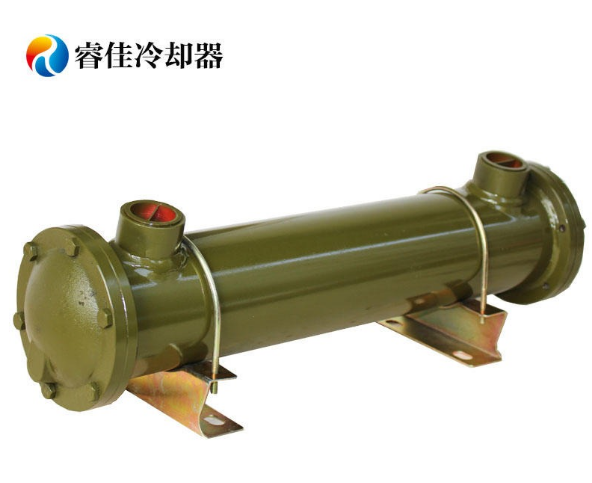

The OR water cooler is a very common series on the market and its structure is also the simplest of many series.
The common models of OR water coolers are OR-60, OR-100, OR-150, OR-250, OR-350, OR-600, OR-800, OR-1000, OR-1200. The first six models are more commonly used models. Today, we RUIJIA COOLER will introduce the first three models to you.
Water cooler OR-60.
Total length: 450mm. The diameter of the shell: 89mm.
The oil port space: 305mm. The oil port size: 3/4".
The water port space: 45mm. The water port size: 3/4".
Maximum oil flow rate: 60L/min.
Shell design pressure:1.2Mpa. Tube design pressure: 0.6Mpa.
The cleaning cycle：Twice/year.
Water cooler OR-100.
Total length: 555mm. The diameter of the shell: 114mm.
The oil port space: 370mm. The oil port size: 3/4".
The water port space: 68mm. The water port size: 3/4".
Maximum oil flow rate: 100L/min.
Shell design pressure:1.2Mpa. Tube design pressure: 0.6Mpa.
The cleaning cycle：Twice/year.
Water cooler OR-150.
Total length: 575mm. The diameter of the shell: 140mm.
The oil port space: 385mm. The oil port size: 1-1/4".
The water port space: 85mm. The water port size: 1".
Maximum oil flow rate: 150L/min.
Shell design pressure:1.2Mpa. Tube design pressure: 0.6Mpa.
The cleaning cycle：Twice/year.
The rest of the OR series models will be introduced to you later. If you want to know more information about hydraulic OR water coolers, you can click on to our official website: www.rjcooler.com or call our service hotline: (86) 400-875-7507. RUIJIA COOLER manufacturer will serve you 24 hours a day.
